Gerber Scientific Plotters GS and HS series Plotters


Model GS15" and HS15" Plus Plotter Replacement & Spare Parts

It's crucial to maintain and repair your Gerber Scientific Plotters to extend their lifespan. These plotters are built to last!

You can easily order any necessary parts to keep your Gerber GS and HS Plus Plotters running smoothly and maximizing profits.

Need help?

We are your Gerber Systems Specialist at Graphic Marking Systems, a full-service repair and tech center.

If you need assistance, you can call us at 1.800.232.8018 for technical aid and repair.

We also offer onsite, in-house, or telephone/video conferencing consulting.Feel free to contact us via email at gerbertechservice@graphicms.com

PLEASE NOTE: When ordering replacement parts, use the COMMENTS section in the checkout area to enter your machine's serial number, model, and/or Gerber Field Service Support Case number (from Gerber Technology/Lectra).

This important information enables us to provide top-notch technical support and accept returned parts for any technical issues you may encounter.

Click on any photo below to enlarge.

  1. 50 ft, PC to Plotter Cable for GS, HS Plotters

    50 ft, PC to Plotter Cable for GS, HS Plotters

    P61414C
    Special Price $212.40
  2. Accessory Tool Kit for the GS/15, HS/15

    Accessory Tool Kit for the GS/15, HS/15

    P56728A
    Special Price $633.90
  3. Allen Screw for Gerber Tangential knife holders, HS and GS plotters

    Allen Screw for Gerber Tangential knife holders, HS and GS plotters

    P25930A
    Special Price $0.71
  4. Bail Arm Wheels for HS15+,GS+,HS,GS Plotters

    Bail Arm Wheels for HS15+,GS+,HS,GS Plotters

    P25808B
    Special Price $2.35
  5. Bail wheel axle (Pin) for HS15+,GS+,HS,GS Plotters

    Bail wheel axle (Pin) for HS15+,GS+,HS,GS Plotters

    P25809B
    Special Price $4.36
  6. Bailarm wheel and axle kit includes two wheels and one axle. This kit is for all GS and HS plotters HS15+, HS15, GSx, GS15.

    Bailarm wheel and axle kit includes two wheels and one axle. This kit is for all GS and HS plotters HS15+, HS15, GSx, GS15.

    PBAAXLE-K
    Special Price $9.01
  7. Box for GS Plotters

    Box for GS Plotters

    P75729A
    Special Price $571.75
  8. Cable, 10 ft, 9 pin F to 25 pin M, Serial PC to Plotter GS, HS

    Cable, 10 ft, 9 pin F to 25 pin M, Serial PC to Plotter GS, HS

    P41879C
    Special Price $117.60
  9. Cam Pad for GS15-GSx-HS plotters

    Cam Pad for GS15-GSx-HS plotters

    P39411B
    Special Price $20.43
  10. Clamp SFT 312X812X250, for GS750-Plus Plotter

    Clamp SFT 312X812X250, for GS750-Plus Plotter

    P75639B
    Special Price $39.60
  11. Drum and Sprocket Assembly for all HS & GS 15+ Plotter

    Drum and Sprocket Assembly for all HS & GS 15+ Plotter

    P38284D
    Special Price $610.01
  12. Drum and Sprocket Assembly for GS 750+ Plotter

    Drum and Sprocket Assembly for GS 750+ Plotter

    P66935A
    Special Price $2,997.80

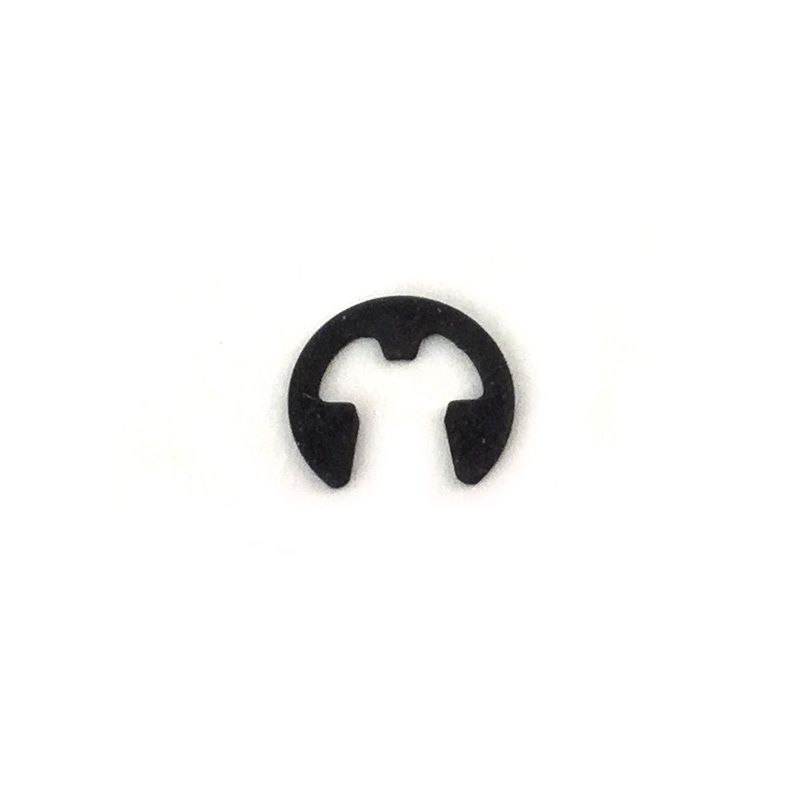

  13. E- Clip to hold on Bail Wheels for enVision 375 15" and 750 30"

    E- Clip to hold on Bail Wheels for enVision 375 15" and 750 30"

    P29073A
    Special Price $0.99
  14. Fan/Motor HS15+, Plotters

    Fan/Motor HS15+, Plotters

    P25702A
    Special Price $66.24
  15. G4 IDLER PULLEY BRACKET ASSY for GS15/GSx plotters

    G4 IDLER PULLEY BRACKET ASSY for GS15/GSx plotters

    P16713B
    Special Price $166.44
  16. GS15 Plus and GSX Fuse 3.15A 250V 5x20mm

    GS15 Plus and GSX Fuse 3.15A 250V 5x20mm

    P57190A
    Special Price $4.15
  17. GS15+ Plotter - Timing Belt 100P 167T

    GS15+ Plotter - Timing Belt 100P 167T

    P56509C
    Special Price $118.00
  18. GS15/ GSX TUNE-UP KIT - Includes: Paper Bail Wheels, Bail Axle, Roller Assembly and Lift Washer

    GS15/ GSX TUNE-UP KIT - Includes: Paper Bail Wheels, Bail Axle, Roller Assembly and Lift Washer

    P84376A
    Special Price $80.69
  19. Keypad for Gerber GS15+, HS15+ & GS750+ Plotters

    Keypad for Gerber GS15+, HS15+ & GS750+ Plotters

    P54851C
    Special Price $222.66
  20. Paper Bail & Wheel Assembly for GS, HS 15" Plotters.

    Paper Bail & Wheel Assembly for GS, HS 15" Plotters.

    P66922A
    Special Price $68.49
  21. Registration Eyepiece for the HS15 and GS15 Plotters "Bomb Site"

    Registration Eyepiece for the HS15 and GS15 Plotters "Bomb Site"

    P50136B
    Special Price $75.00
  22. ROLLER ASSEMBLY, MOLDED for GS15-GSx-HS plotters

    ROLLER ASSEMBLY, MOLDED for GS15-GSx-HS plotters

    P27221B
    Special Price $70.00
  23. Serial Port PCB-367 to Rear Panel for GSx and GS15+

    Serial Port PCB-367 to Rear Panel for GSx and GS15+

    P41142C
    Special Price $143.94
  24. Tangential Knife Holder with 30 degree blade for HS+, GS+, GS and HS plotters

    Tangential Knife Holder with 30 degree blade for HS+, GS+, GS and HS plotters

    P56734A
    Special Price $80.28
  25. Theta Belt for G4/SP/GS

    Theta Belt for G4/SP/GS

    P25572A
    Special Price $21.77
  26. Theta Clamp, for GS15-Plus Plotter

    Theta Clamp, for GS15-Plus Plotter

    P55668A
    Special Price $34.70
  27. Theta Knife Lift Washers for GS, GSx, HS and all Gerber tangential knife holders

    Theta Knife Lift Washers for GS, GSx, HS and all Gerber tangential knife holders

    P27081B
    Special Price $1.00
  28. TOOL FORCE HOUSING for HS15, GS15+, GSx

    TOOL FORCE HOUSING for HS15, GS15+, GSx

    P29109D
    Special Price $333.87
  29. USB to Serial Conversion Cable for the Envision Sprocket Plotter. Works with Win10 and Win11.

    USB to Serial Conversion Cable for the Envision Sprocket Plotter. Works with Win10 and Win11.

    P83305A
    Special Price $118.87
  30. X-Axis Drive Pully for GS 750 Plus Plotters

    X-Axis Drive Pully for GS 750 Plus Plotters

    P52866C
    Special Price $268.92
  31. Y Axis Gear and Bracket HS15

    Y Axis Gear and Bracket HS15

    P39736B
    Special Price $374.57
