225 Gerber High Performance Vinyl
225 Gerber High Performance Cast Vinyl Series by 3M
Industry-standard cast vinyl with a clear synthetic liner—built for doming, fleet graphics, and severe-weather performance.

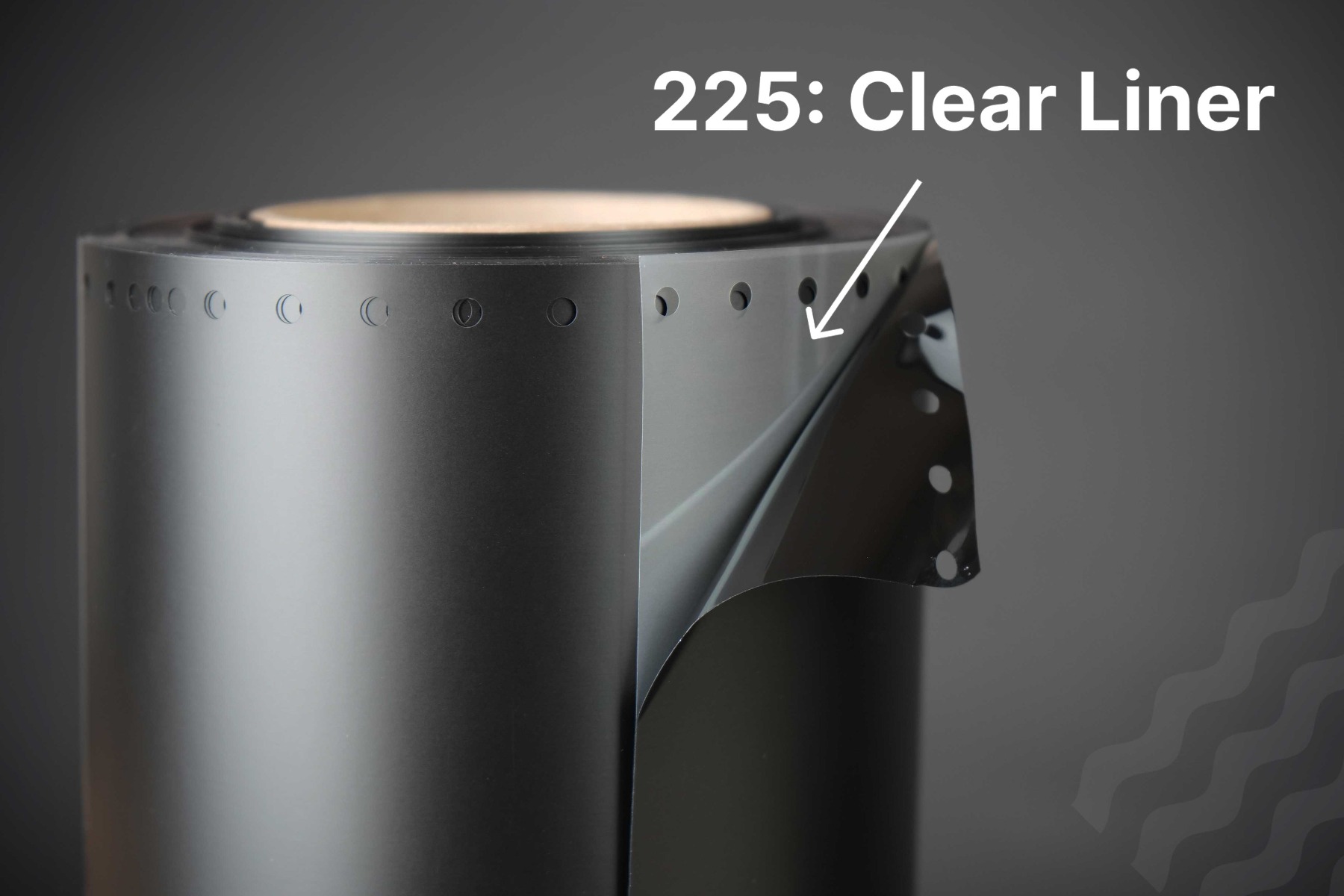

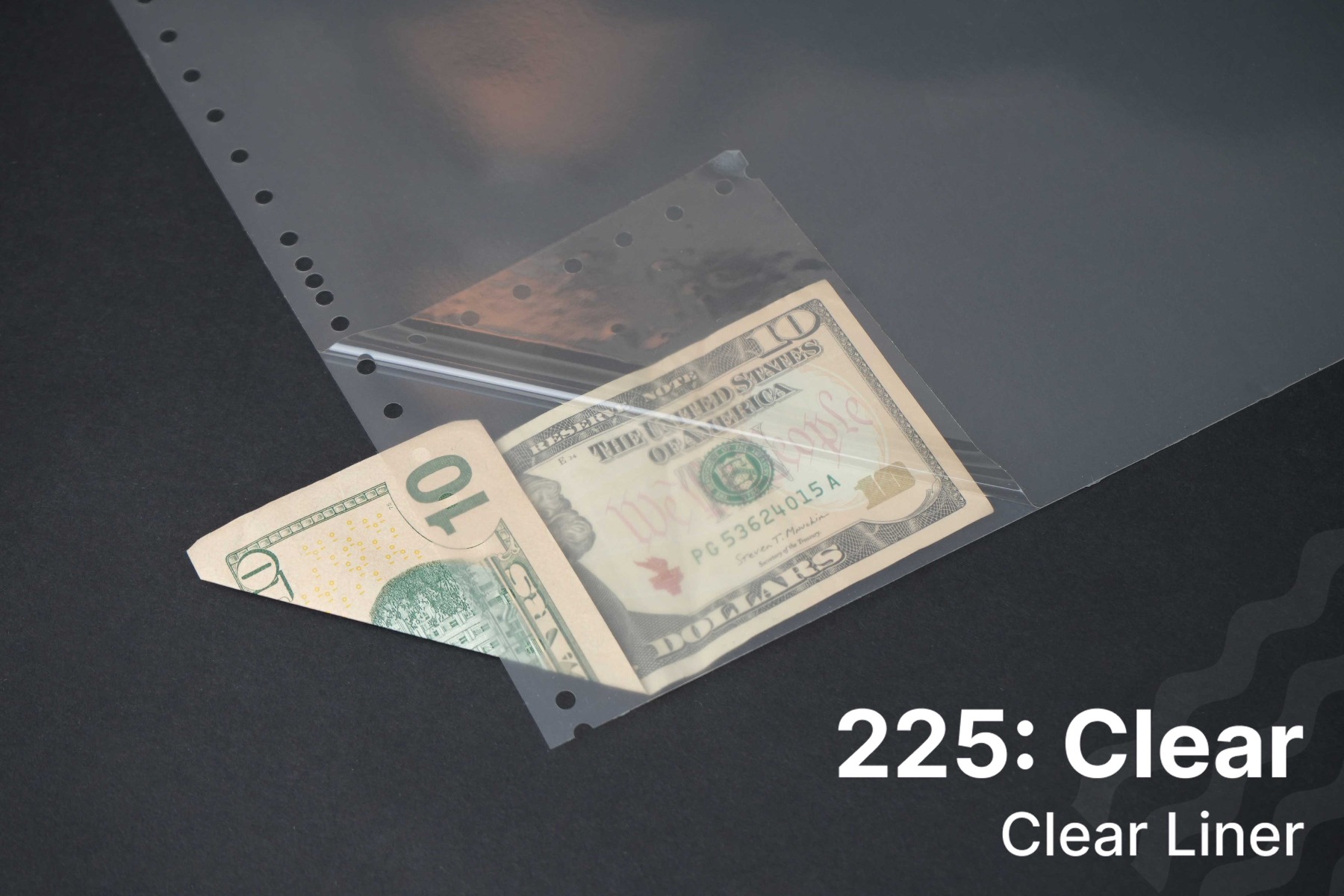

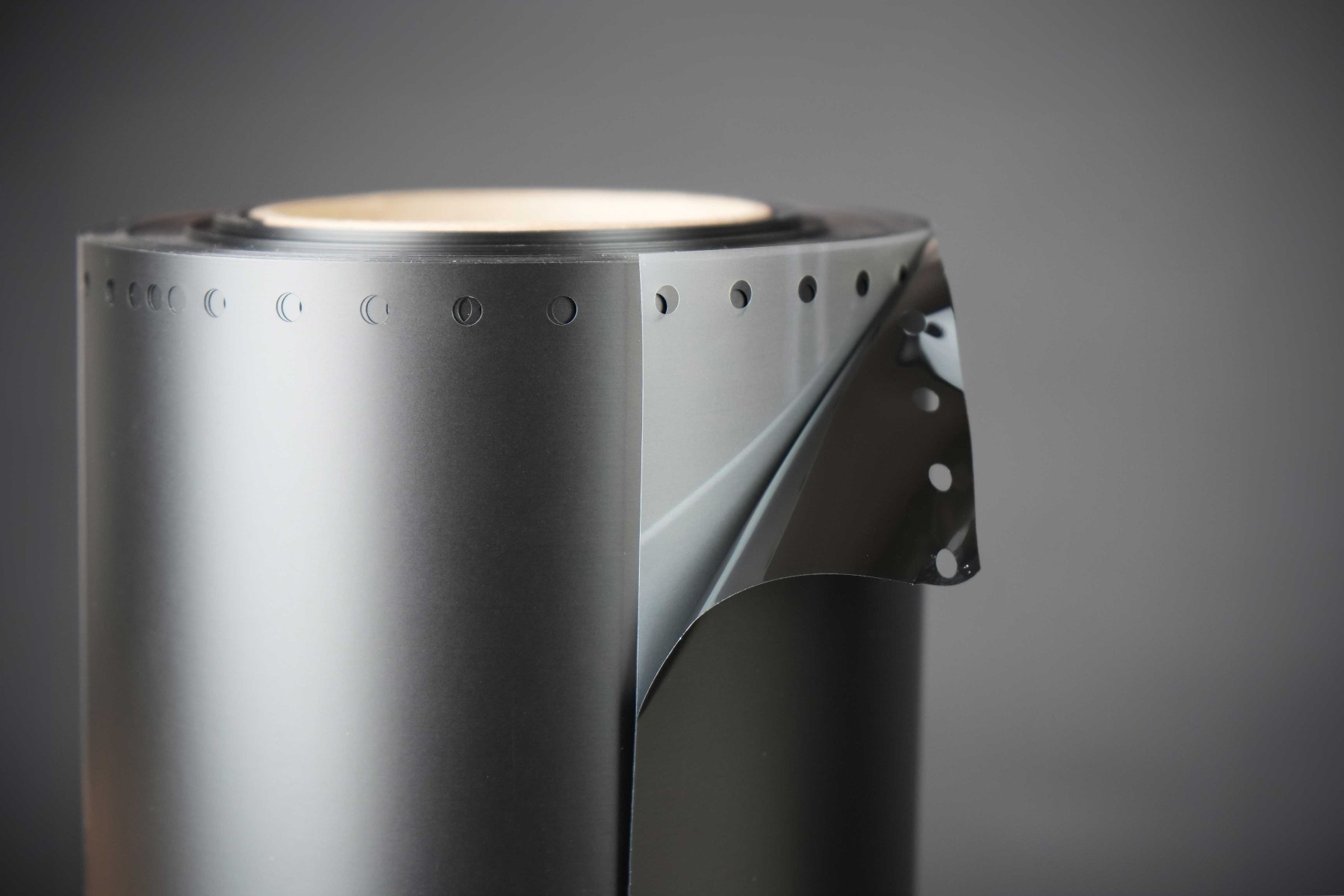

Scotchcal 225 sets the industry standard for vinyl performance. It is the same dimensionally stable cast vinyl as Scotchcal 220, with a clear, pressure-sensitive adhesive—but upgraded with a clear synthetic liner that won't curl or split when exposed to moisture or humidity.
That clear liner makes Series 225 an excellent choice for doming applications and aids alignment when placing graphics on a substrate or light table. Available in 25+ colors including opaque gloss, metallic, and Clear Enamel Receptive, in both punched and unpunched formats.
Long life, vivid colors, and outstanding Gerber Edge print results—that's Scotchcal 225.
Specifications
| Printer | Gerber |
| Widths | 15" and 30" punched, 24" and 48" unpunched |
| Lengths | 50 yd |
| Thickness | 2 mil |
| Colors | 25+ (see color chart) |
*If you do not see the color you need, call to order: 1-800-232-8018.
Applications
- - UV durable labels
- - Window displays
- - Vinyl markings
- - Doming
- - Exterior signs
- - Vehicle & fleet graphics
Key Features
- Dimensionally Stable Cast Vinyl: Industry-standard 3M construction
- Clear Synthetic Liner: Won't curl or split in moisture or humidity
- Ideal for Doming: Clear liner supports doming and light-table alignment

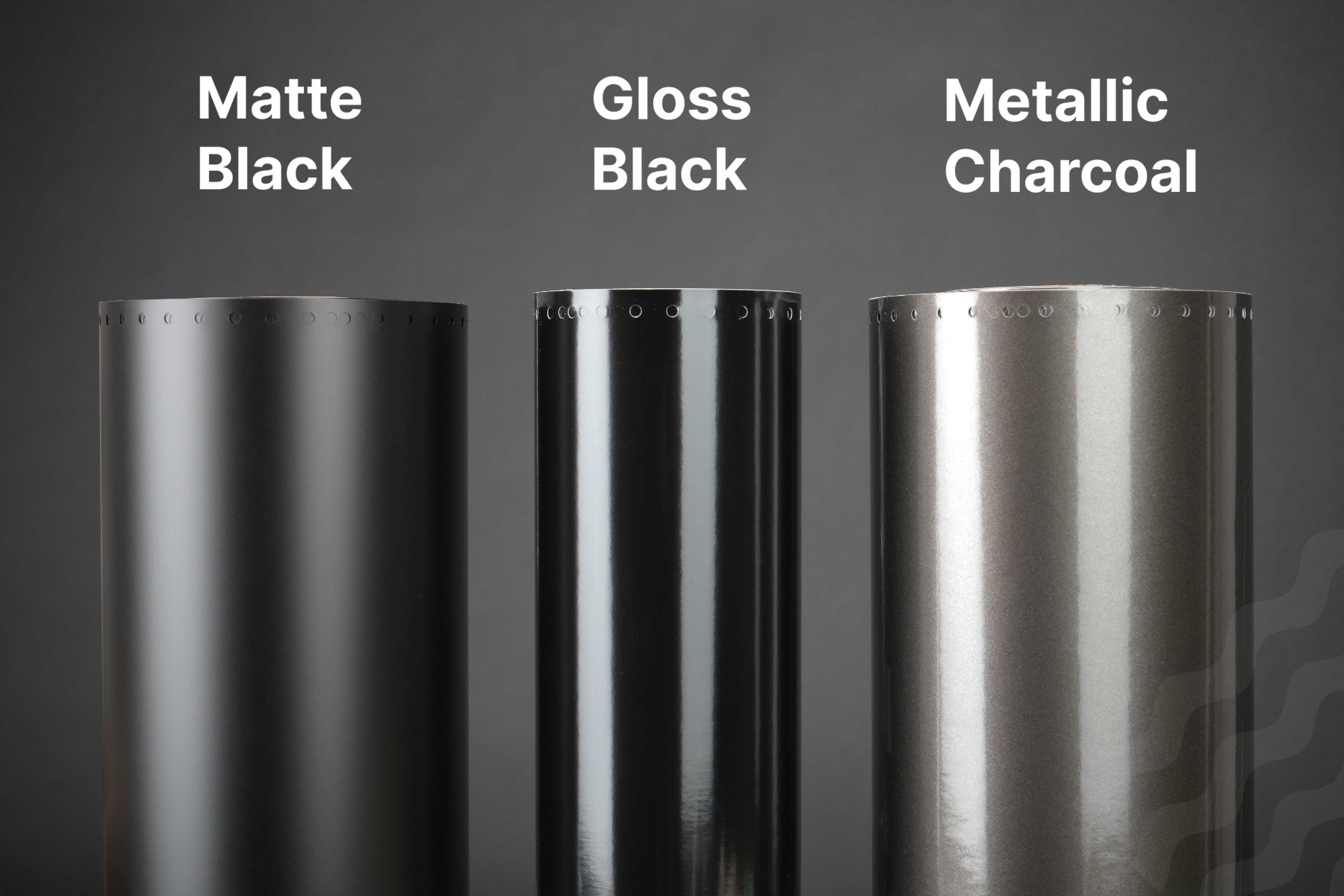

- 25+ Colors: Opaque gloss, metallic & Clear Enamel Receptive
- Gerber Edge Compatible: Vivid colors & outstanding print results
Physical Properties
- Film: 2 mil cast vinyl
- Total Thickness: 2.5–3.5 mil (0.063–0.09 mm)
- Film Color: Over 25 colors
- Adhesive: Clear, pressure-sensitive
- Liner: Transparent synthetic
- Removability: Permanent
Application Surfaces
- Substrates: Flat surfaces with or without rivets, or simple curves
- Flexible signage
- Glass & metal
- Acrylic & polycarbonates
- Fiberglass
- Painted surfaces
Use of application tape is recommended for graphics larger than a business card.
Why Choose Scotchcal 225?
- ✔ Industry-standard cast vinyl performance from 3M
- ✔ Clear liner won't curl or split in humid conditions
- ✔ Superior doming and light-table alignment
- ✔ Withstands severe weather & handling
- ✔ Long life with vivid, durable color
- ✔ Perfect for fleet graphics and exterior signage
Resources
Scotchcal 225 Vinyl Spec Sheet See documentation above for full specifications and available colors.
